2 Channel Relay Controller Board


Description

Numato 2 Relay breakout module is a smart choice for controlling higher current loads from your microcontroller development board or a PC parallel port.
Features

  • 2 on board SPDT Relays .
  • 7A Maximum Switching Current.
  • ULN2003 Relay Driver.
  • Very compact and easy to wire up
  • Connects directly to TTL devices (Microcontrollers, Arduino etc..).

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Category Relay Controller
SKU: RL20002

Downloads

Title Date Download
User Manual Feb 13 2018 Download
View/Download 3D Model (STEP) Feb 13 2018 Download
Jan 21 2022 Download
Nov 10 2022 Download

Description

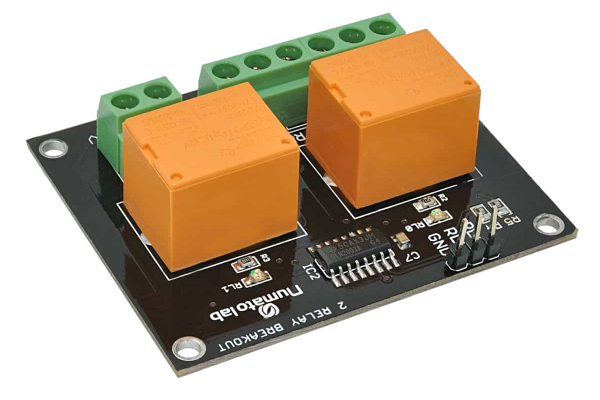

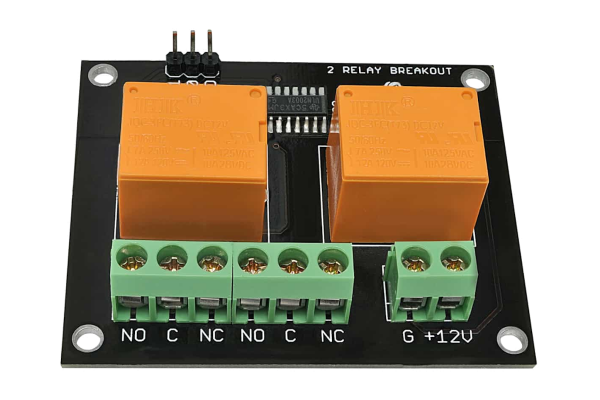

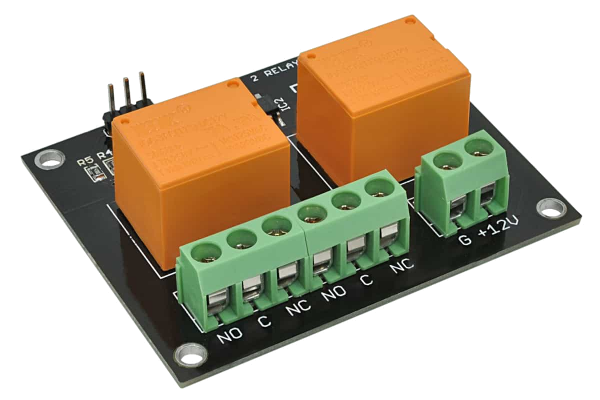

Numato 2 Relay breakout module is a smart choice for controlling higher current loads from your microcontroller development board or a PC parallel port. This board has two on-board relays which can switch up to 10A. All relay terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.  The relays are driven by popular darlington array ULN2003. Relay coil is rated for 12VDC.

Features

  • Very compact and easy to wire up
  • 1.6mm FR4 PCB with black solder mask and white silk screen
  • Connects directly to TTL devices (Microcontrollers, Arduino etc..)
  • Two Relays with one three pin screw terminals for easy connectivity

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Additional information


Weight 0.15 lbs
Dimensions 5.00 x 3.00 x 2.00 in
Number Of Relays

2

Relay Type

Max Relay Current Rating

10A

Communication

TTL Compatible Input

Sample Code


Language/Technology IDE/Compiler Type OS Download
Download
