8 Channel Solid State Relay Controller Board


Description

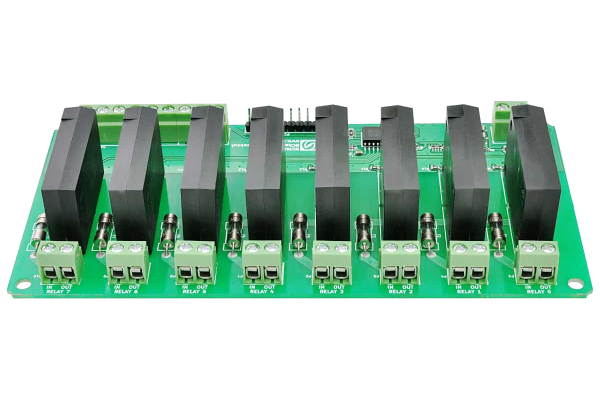

Numato 8 Channel Solid State Relay breakout module is a smart choice for controlling higher current loads from your microcontroller development board, PC parallel port or your favorite Arduino. This board has eight on-board Solid State Relays which can switch up to 3A.
Features

  • 8 on board Solid State Relays .
  • 3A Maximum Switching Current.
  • ULN2003 Relay Driver.
  • LED indication for Power and individual relay status.
  • Connects directly to TTL devices (Microcontrollers, Arduino etc..).
  • Fuses are provided for over current protection for each relay.
  • Very compact and easy to wire up

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures

Category Relay Controller
SKU: SSRC80001

Downloads

Title Date Download
User Manual Feb 13 2018 Download
Jan 21 2022 Download
Nov 10 2022 Download

Description

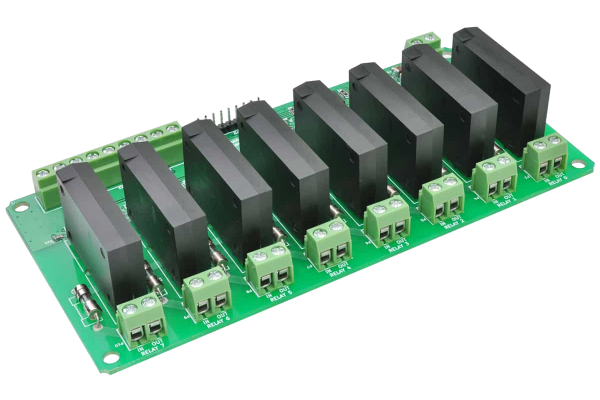

Numato 8 Channel Solid State Relay breakout module is a smart choice for controlling higher current loads from your microcontroller development board, PC parallel port or your favorite Arduino. This board has eight on-board Solid State Relays which can switch up to 3A. All relay terminals are accessible through screw terminals which makes wiring up the board very easy. The relays are driven by popular darlington array ULN2003. This product is available for purchase with AC or DC Solid State Relays.

Features

  • Very compact and easy to wire up
  • 1.6mm FR4 PCB with black solder mask and white silk screen
  • Connects directly to TTL devices (Microcontrollers, Arduino etc..)
  • Four Solid State Relays with one two pin screw terminals for easy connectivity

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Additional information


Weight 0.35 lbs
Dimensions 10.00 x 5.00 x 2.00 in
Relay Type

Solid State AC, Solid State DC

Number of Relays

8

Max Relay Current Rating

3A

Relay Driver

ULN2803

Sample Code


Language/Technology IDE/Compiler Type OS Download
Download
