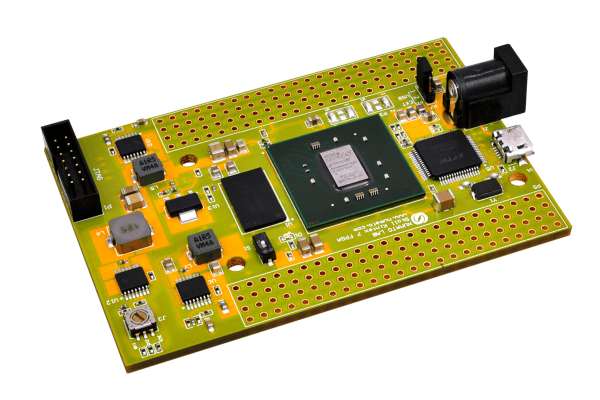

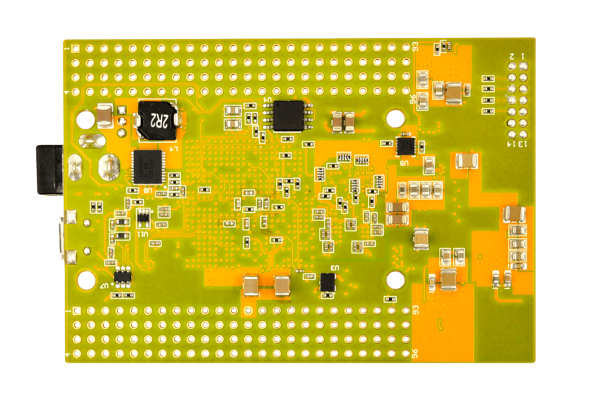

Skoll is an easy to use USB FPGA module with DDR3 SDRAM featuring Xilinx Kintex 7 FPGA. With the compact form factor and IO accessibility on industry standard 2.54mm (100mil) headers, Skoll is a great choice for embedding FPGA, DDR3 and USB in your system with ease. With Skoll, the complex parts of the design are already taken care for you so you can focus on your own application and achieve faster time to market.
| Title | Date | Download |
|---|---|---|
| User Manual | Feb 13 2018 | Download |
| XDC File For Vivado Designs | Feb 13 2018 | Download |
| Configuration Tool (Windows) | Feb 13 2018 | Download |
| Skoll BSP | Feb 13 2018 | Download |
| View/Download 3D Model (STEP) | Feb 13 2018 | Download |
| Feb 02 2021 | Download | |
| Aug 26 2021 | Download | |
| Oct 22 2021 | Download | |
| Oct 22 2021 | Download | |
| Jan 20 2022 | Download | |
| Jan 21 2022 | Download | |
| Nov 10 2022 | Download | |
| Oct 26 2023 | Download | |
| Oct 26 2023 | Download | |
| Nov 03 2023 | Download | |
| Nov 15 2023 | Download | |
| Nov 15 2023 | Download | |
| Nov 30 2023 | Download | |
| Nov 30 2023 | Download | |
| Dec 05 2023 | Download | |
| Dec 05 2023 | Download | |
| Mar 13 2024 | Download | |
| Mar 13 2024 | Download | |
| Mar 15 2024 | Download |
Skoll is an easy to use FPGA Development board featuring Kintex 7 FPGA. It is specially designed for development and integration of FPGA based accelerated features to other designs. This development board features Xilinx XC7K70T FPGA with FTDI’s FT2232H Dual-Channel USB device. The high speed USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. No programmer or special down loader cable is needed to download the bit stream to the board. The second FTDI channel can be used to develop custom high data-rate USB based applications. Skoll provides user flexibility in adding their own peripherals though IO Expansion Headers.
Features
Applications
| Weight | 0.12 lbs |
|---|---|
| Dimensions | 5.00 x 3.00 x 2.00 in |
| FPGA | |
| Memory | |
| Number Of GPIOs (Max) |
150 |
| Configuration Options |
JTAG, USB |
| Primary Clock Frequency | |
| Host Interface |
USB 2.0 |
| Language/Technology | IDE/Compiler | Type | OS | Download |
|---|---|---|---|---|
| Verilog | Xilinx Vivado | 16x2 LCD Display | Saturn IO Breakout Module Alphanumeric LCD Displa | Download |
| Verilog | Xilinx Vivado | LEDs | Saturn IO Breakout Module LED Expansion Module - 8 | Download |
| Verilog | Xilinx Vivado | Push Button Switch | Saturn IO Breakout Module Push Button Switch Expan | Download |
| Verilog | Xilinx Vivado | Seven Segment LED Display | Saturn IO Breakout Module Seven Segment LED Displa | Download |
| Verilog | Xilinx Vivado | 8Bit VGA | Saturn IO Breakout Module VGA Display Expansion M | Download |
| Verilog | Xilinx Vivado | CS4344 Stereo Audio | Saturn IO Breakout Module CS4344 Audio Expansion | Download |
| Verilog | Xilinx Vivado | HDMI Transmitter | Saturn IO Breakout Module HDMI Transmitter Expans | Download |
