4 Channel USB Solid State Relay Module - SSR DC


Description

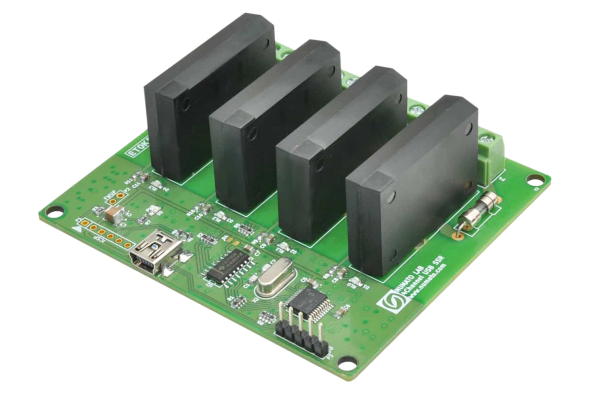

Numato Lab`s 4 Channel USB Solid State Relay Module is great for controlling your devices through USB without any USB protocol knowledge. This modules plugs in to your design seamlessly. Individual relay can be controlled by simple commands.

Features

  • 4 on board Solid State Relays with individual LEDs for status.
  • 3A Maximum Switching Current.
  • 4 TTL (3.3V)Compatible GPIOs.
  • 4 Analog Input Channels (Multiplexed with GPIOs).
  • 10 bits Analog Input Resolution.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.
  • Relay contacts available on easy to access screw terminals.
  • Can be powered from USB or external power supply.
  • Can be controlled by using standard serial console applications or custom applications.
  • No vendor specific libraries or APIs required.

Flag Icon USA CO, USA Warehouse : In Stock, Shipping today!
Flag Icon India BLR, India Warehouse: In Stock, Shipping today!

Category USB Relay
SKU: SSR40001

Downloads

Title Date Download
Numato Lab USB CDC Driver Feb 13 2018 Download
User Manual Feb 13 2018 Download
View/Download 3D Model (STEP) Feb 13 2018 Download
Oct 13 2021 Download
Nov 09 2021 Download
Jan 20 2022 Download
Aug 05 2022 Download
Nov 10 2022 Download
Apr 24 2023 Download

Description

Numato Lab`s 4 Channel USB Solid State Relay Module is great for controlling your devices through USB without any USB protocol knowledge. This modules plugs in to your design seamlessly. Individual relay can be controlled by simple commands.

This product has four on board Solid State  Relays that can switch up to 3A load.The relays are controlled by USB capable Microchip PIC Microcontroller (PIC18F14K50) and comes with built in firmware that supports simple commands to control relays and read relay status. The board, when attached to a PC/Laptop shows up as a serial port and all you need to control the board is a serial terminal application like HyperTerminal or Putty. This board can easily be controlled by writing simple serial port application in VC++, VB, VBA (Word, Excell etc), Perl, Python etc.

Features

  • 4 on board Solid State Relays with individual LEDs for status.
  • 3A Maximum Switching Current.
  • 4 TTL (3.3V)Compatible GPIOs.
  • 4 Analog Input Channels (Multiplexed with GPIOs).
  • 10 bits Analog Input Resolution.
  • USB interface with CDC support. As easy as using a serial port, no USB knowledge required.
  • Relay contacts available on easy to access screw terminals.
  • Can be powered from USB or external power supply.
  • Can be controlled by using standard serial console applications or custom applications.
  • No vendor specific libraries or APIs required.

Applications

  • Home Automation
  • Industrial Automation
  • Lighting Control
  • Garden Equipment Control
  • Test Fixtures
  • DIY and Hobby

Supporting operating Systems

  • Windows XP
  • Windows 7
  • Windows 8/8.1
  • Windows 10
  • Linux
  • Mac OS X
  • Android

Additional information


Weight 0.35 lbs
Dimensions 6.00 x 5.00 x 2.00 in
Relay Type

Solid State AC, Solid State DC

Number of Relays

4

Max Relay Current Rating

3A

Number Of GPIOs (Max)

4

Analog Inputs

4(Multiplexed with IOs)

Analog Input Resolution

10 Bits

Communication

USB

Sample Code


Language/Technology IDE/Compiler Type OS Download
C VCExpress2008 Command Line Windows Download
C VCExpress2010 Command Line Windows Download
Visual Basic VBExpress2008 GUI Windows Download
Visual Basic VBExpress2010 GUI Windows Download
Visual Basic Visual Basic 6 GUI Windows Download
C Visual C++ 6 Command Line Windows Download
Python Python Command Line Windows Download
Java NetBeans Command Line Any Download
C# Visual Studio 2012 GUI Windows Download
AutoHotkey AutoHotkey GUI Windows Download
VBA MS Excel 2010 GUI Windows Download
VBA MS Word 2010 GUI Windows Download
Visual Basic JustBASIC NA Windows Download
Javascript Node.js Command Line Windows Download
AutoIt AutoIt NA Windows Download
Labview Labview Simple GUI Any Download
Perl Perl Command Line Linux Download
Perl Perl Command Line Windows Download
