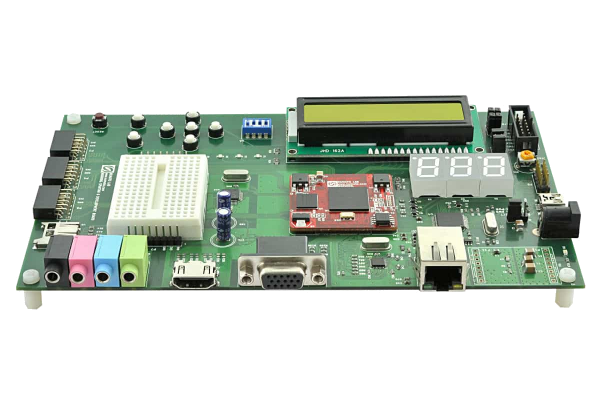

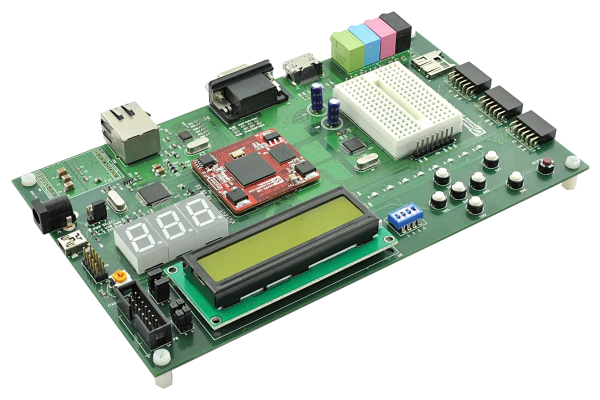

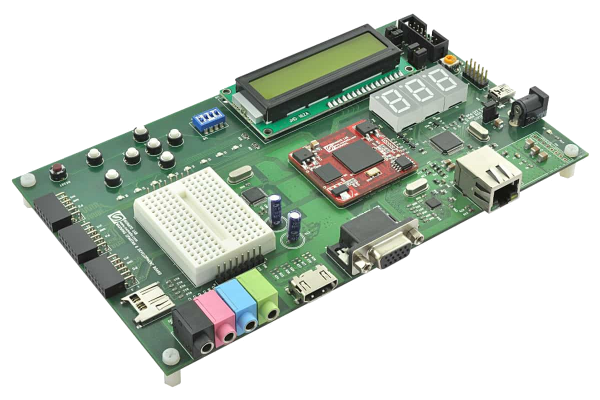

Waxwing Spartan6 Development Board is a low cost FPGA development board with a lot of features including DDR SDRAM, 100M Ethernet, AC97 codec and DVI-D. Waxwing Development Board features Waxwing Xilinx Spartan-6 FPGA Mini Module with high density connectors for external IO interface.
Features
| Title | Date | Download |
|---|---|---|
| User Manual | Feb 13 2018 | Download |
| Configuration Tool (Windows) | Feb 13 2018 | Download |
| Numato Lab Board support files for EDK BSB wizard | Feb 13 2018 | Download |
| User Constraints File | Feb 13 2018 | Download |
| Jun 05 2020 | Download | |
| Jan 21 2022 | Download | |
| Nov 10 2022 | Download |
Waxwing Spartan6 Development Board is a low cost FPGA development board with a lot of features including DDR SDRAM, 100M Ethernet, AC97 codec and DVI-D. Waxwing Development Board features Waxwing Xilinx Spartan-6 FPGA Mini Module with high density connectors for external IO interface. This Development board makes it easy to evaluate and build solutions with Waxwing Spartan 6 FPGA module. The Development board also provides easy access to JTAG signals on a standard Xilinx Platform Cable compatible header.
Features
Applications
| Weight | 0.50 lbs |
|---|---|
| Dimensions | 12.00 x 9.00 x 2.00 in |
| FPGA | |
| Memory | |
| Ethernet |
100BASE-T |
| Number Of Clock Sources |
1 |
| Primary Clock Frequency | |
| Audio Codec |
AC97 |
| Display Type | |
| Number Of General Purpose LEDs |
8 |
| Video Out |
HDMI, VGA |
| Data Storage |
Micro SD Slot, SPI Flash |
| Configuration Options |
JTAG, USB |
| Number Of GPIOs (Max) |
24 |
| Switches |
DIP, Push Button |
| Language/Technology | IDE/Compiler | Type | OS | Download |
|---|---|---|---|---|
| Verilog | Xilinx ISE | 16x2 LCD Display | Alphanumeric LCD Display Expansion Module | Download |
| Verilog | Xilinx ISE | 8Bit VGA | VGA Display Expansion Module | Download |
| Verilog | Xilinx ISE | LM4550 AC97 Audio | LM4550 AC97 Expansion Module | Download |
| Verilog | Xilinx ISE | CS4344 Stereo Audio | CS4344 Audio Expansion Module | Download |
| Verilog | Xilinx ISE | HDMI Transmitter | HDMI Transmitter Expansion Module | Download |
| Verilog | Xilinx ISE | 100M Ethernet | 100BASE-T Ethernet Expansion Module | Download |
| Name | Part# | Type |
|---|---|---|
| DC Power Line Communication (PLC) Reference Design | 24VDCPLCEVM | Evaluation Modules & Boards |
| Three Phase BLDC & PMSM Motor Kit with DRV8301 and Piccolo MCU | DRV8301-HC-C2-KIT | Evaluation Modules & Boards |
