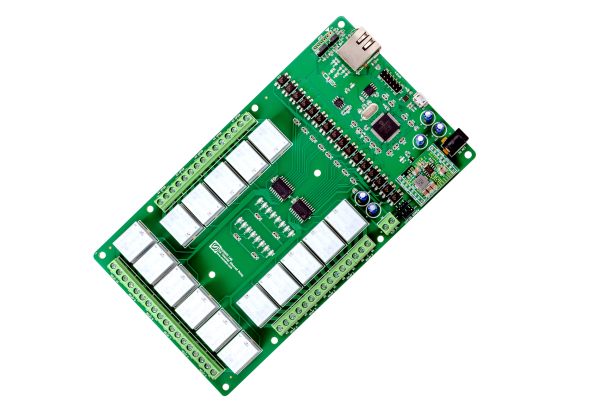

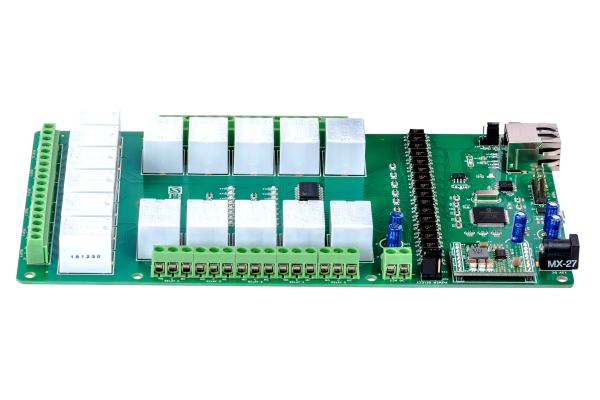

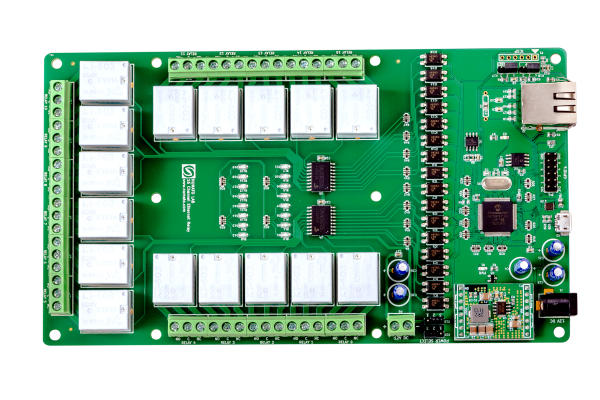

16 Channel Ethernet Relay Module-12V


Description

Numato Lab 16 Channel Ethernet Relay module allows controlling electrical devices remotely through Ethernet. This is very helpful in those situations where the device that needs to be controlled is located far from the PC and thus can not run USB cable. Numato Lab Ethernet Relay modules are designed to be very easy to setup and use.

Features

  • 16 SPDT Relays with individual LEDs for status.
  • 7A Maximum Switching Current.
  • 8 TTL (3.3V)Compatible GPIOs.
  • 8 Analog Input Channel(Multiplexed with GPIOs).
  • 10 Bit Analog Input Resolution.
  • Unique MAC Address.
  • 10BASE-T Ethernet Communication.
  • Password protected Web console and Telnet communication interface.

Category Ethernet Relay
SKU: 16ETHRL001-12V

Downloads

Title Date Download
Device Discoverer Feb 13 2018 Download
User Manual Feb 13 2018 Download
View/Download 3D Model (STEP) Feb 13 2018 Download
May 11 2020 Download
May 11 2020 Download
Mar 09 2021 Download
Nov 09 2021 Download
Jan 20 2022 Download
Jan 20 2022 Download
Nov 10 2022 Download

Description

Numato Lab 16 Channel Ethernet Relay module allows controlling electrical devices remotely through Ethernet. This is very helpful in those situations where the device that needs to be controlled is located far from the PC and thus can not run USB cable. Numato Lab Ethernet Relay modules are designed to be very easy to setup and use.

This product has 16 on board relays and 8 GPIOs. Each relay/gpio can be individually controlled through the built in easy to use web interface or through any popular terminal emulator that supports TELNET protocol. All GPIOs can be used as analog inputs (10 bits resolution) as well. Each 16 Channel Ethernet Relay module is shipped with unique MAC address. These devices also supports assigning and retrieving custom identification string that can be used for identifying individual devices when there are large number of devices connected on the same network. All relay terminals are available on screw terminals which makes connecting external devices very easy.

Features

  • Microcontroller: Microchip PIC18F97J60(1-Mbit Flash Microcontroller with 10Mbps Ethernet communication peripheral)
  • Memory: Microchip 25LC1024 serial EEPROM provides 1024 Kbits of storage for both web pages and nonvolatile configuration options
  • MAC Address: Separate Serial EEPROM(24AA02E48) with Globally Unique value used as MAC Address
  • Reset Jumper: To reset the firmware of board to factory defaults
  • Password protected Web console and Telnet communication interface
  • LED indication for Power and individual relay status
  • Relay: 16 SPDT Relays with individual LEDs for status
  • GPIO: 8 GPIOs, each can be configured as analog inputs

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Additional information


Weight 0.80 lbs
Dimensions 10.00 x 5.00 x 2.00 in
Number of Relays

16

Relay Type

Relay Coil Voltage / Max Relay Current Rating

12V / 10A

Number Of GPIOs (Max)

8

Analog Inputs

8 (Multiplexed with IOs)

Analog Input Resolution

10 Bits

Communication

10BASE-T Ethernet

User Interface

Sample Code


Language/Technology IDE/Compiler Type OS Download
Java NetBeans NA ANY Download
Perl Perl Command Line Windows Download
Python Python Command Line Windows Download
Ruby Ruby Command Line Windows Download
